Projected Capacitive Touch Screen

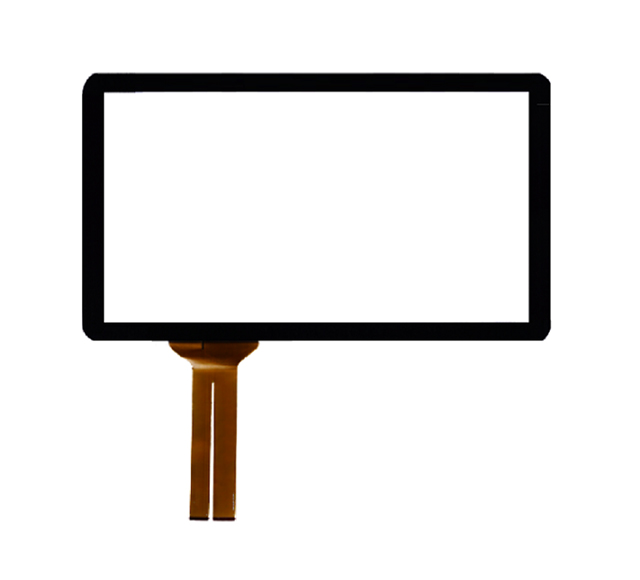

STANDARD SERVICE

Depo touch provides standard projected capacitive Touch Screen from 7″ to 86″

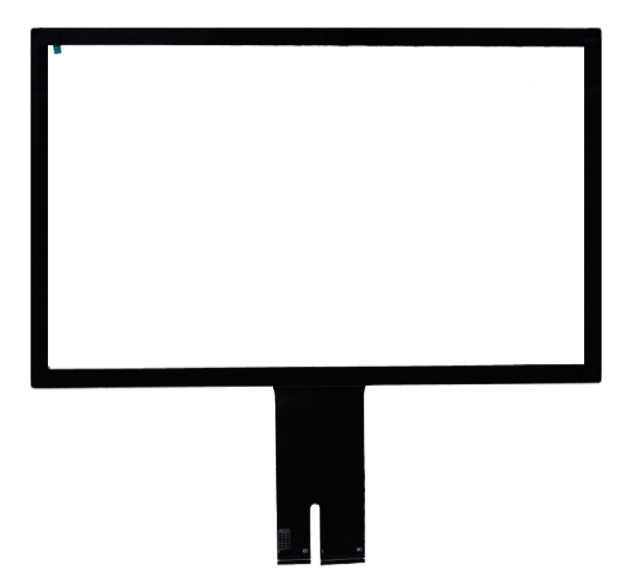

CUSTOM SERVICE

Depo touch supports the customization of various sizes, thicknesses, special effects (such as AG, AR, AF, waterproof, etc,) different shapes, such as curved, round

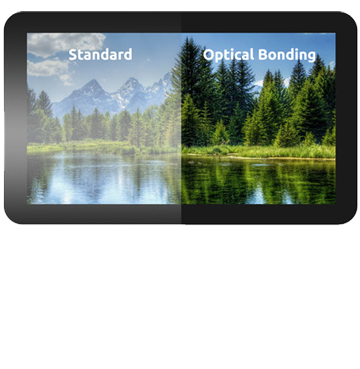

Optical bonding available

Depo touch provides optical bonding service, OCA and LOCA for option

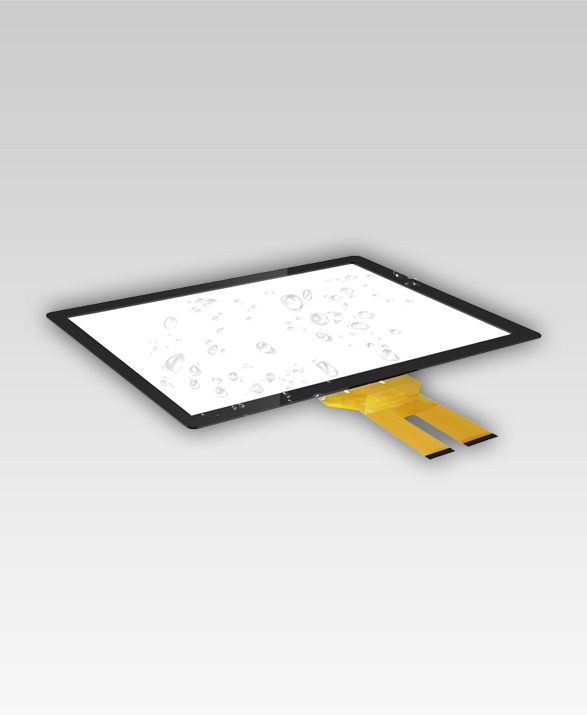

CAPACITIVE TOUCH SCREEN

What’s PCAP Touch Screen?

Projected capacitive touchscreen (PCAP touch panel or PCT ) is composed of a sheet of glass with embedded transparent electrode films and an IC chip, is to determine the specific position of one or more fingers by detecting the change of capacitance on the surface of the touch screen, and supports complete multi-touch functions, including complex gestures. The response speed is extremely sensitive and brings super to the user.

The capacitive touchscreen supports Finger, touch pen, Gloves input .and also supports water-proof touch control, Accurately track wet or sweaty fingers to prevent mistouch caused by water stains on the screen. The Capacitive touch screen will not stop or freeze in a wet environment.

resistive touchscreen product list

resistive touch screen product list

FREE DOWNLOAD

Send download link to:

Features & Benefits

10 Points Multi Touch

Finger, Glove Or Passive Pen Input

Works With Water

Up To 6mm Glass Or PC Cover Len

SPECIFICATION

Technical Spec
Name	:Projected Capacitive Touch screen (PCAP touch screen or PCT touch)
Touch Point	10 points
Size	7'' to 86''
Main Structure	G+G, P+G, G+F+F
Driving Voltage	3.3V/5V
Surface Hardness	7H
Transmittance	＞85%
Cover glass thickness	0.7mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
Glass treatment	AG, AR, AF, other special glass
Controller	Ilitek, EETI, Goodix, Weida

TECHNICAL SPECS :
Main Structure	: G+G, G+P/F
Touch screen size	: 7” -65”
Driving Voltage	: 3.3V/5.0V
Surface Hardness	: 7H
Light transmittance	: > 85%.

TEMPERATURE:
Operating Temperature	: -20℃ ~ +70℃
Storage Temperature	: -30℃ ~ +80℃

CUSTOM DEVELOPMENT PROCESS

Confirm Touchscreen Specs

Before start the custom development, we need to confirm the touchscreen size, structure, Hardware platform, Operating system. Using environment, Cover glass drawing, Cover glass thickness and material and as well as the touch interface and so on. One all parameters are confirmed, we will provide the drawing for your confirmation .and change till customer satisfied.

Sample Making

After drawing confirmed, we will start for sample making.

Touch Interface (Usb/ Rs232/I2C ). Firmware Debugging

After sample making, we will debug a firmware based on the Custom Touchscreen.

Sample Testing

Customer will test the custom PCAP touchscreen and feedback us the situation, if necessary, we may re-debug the firmware till proper work, and we can provide remote assist to solve technical problem. Which beyond our service location.

Mass Production

Once sample approved. we can enter to mass production.
